#3499412 - 01/20/12 05:52 PM Rudder design *****
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
I decided to build a full scale rudder pedal what would match the control stick I am working on.

-The dimensions and travel will be identic to the Bf109G6`s.
-Independent toe brakes
-Gas springs for the realistic force effects.
-Hall sensor for the yaw /high quality pots for the brakes
-Adjustable pedal angle

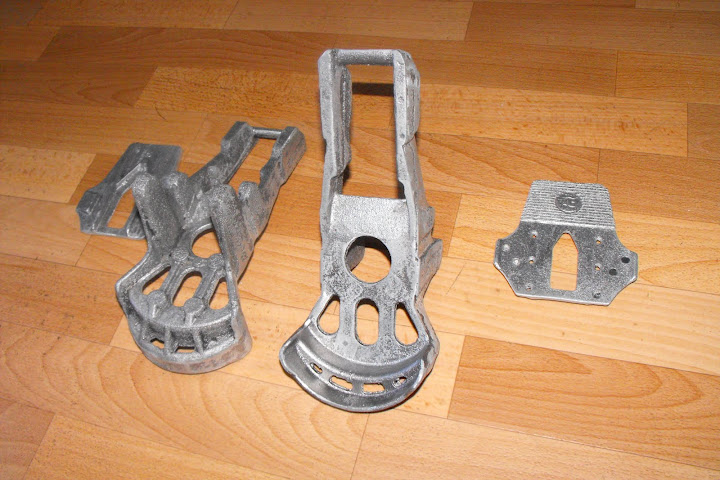

I have a pair of pedal castings to be used in this project.



Some early design shots:


rudder 1 by csaba.moharos


rudder 2 by csaba.moharos

Inline advert (2nd and 3rd post)

#3499478 - 01/20/12 06:52 PM Re: Rudder design [Re: VO101MMaister]
Joined: May 2010
Posts: 3,812
JAMF Offline
Frugalite & P-38 fan
JAMF  Offline
Frugalite & P-38 fan
Senior Member

Joined: May 2010
Posts: 3,812
The Netherlands
Nice! You had those castings made for you, or is there someone who had a large run made for him and is selling them by the pair?

#3499545 - 01/20/12 07:51 PM Re: Rudder design [Re: JAMF]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Hi,

it was made for me, but maybe he can make more. I will send you his contact in pm.

#3499672 - 01/20/12 09:50 PM Re: Rudder design [Re: VO101MMaister]
Joined: May 2010
Posts: 3,812
JAMF Offline
Frugalite & P-38 fan
JAMF  Offline
Frugalite & P-38 fan
Senior Member

Joined: May 2010
Posts: 3,812
The Netherlands
Thanks for the offer, but it wouldn't be my thing. smile You might have peeked the interest of others though. biggrin

#3500847 - 01/22/12 12:27 PM Re: Rudder design [Re: VO101MMaister]
Joined: Jun 2008
Posts: 182
Schweppes Offline
Member
Schweppes  Offline
Member

Joined: Jun 2008
Posts: 182
Nordland, Norway
VO101MMaister would you know if its possible to get hold of a KG13 cast?


Those that forget the pasta are doomed to reheat it.
#3501202 - 01/22/12 10:37 PM Re: Rudder design [Re: Schweppes]
Joined: Mar 2010
Posts: 60
QuickSilver Offline
Junior Member
QuickSilver  Offline
Junior Member

Joined: Mar 2010
Posts: 60
What did you use to model that? It is BEE YOU TEE FULL

#3501505 - 01/23/12 10:20 AM Re: Rudder design [Re: QuickSilver]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Autodesk Inventor smile

#3502650 - 01/24/12 07:54 PM Re: Rudder design [Re: VO101MMaister]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
I use the same method as on the control stick. The only difference is that in this case I am using a gas spring to have a realistic force + damping sensation.

Here is a very early schematic:


#3502834 - 01/24/12 11:23 PM Re: Rudder design [Re: VO101MMaister]
Joined: Aug 2007
Posts: 293
Brandano Offline
Member
Brandano  Offline
Member

Joined: Aug 2007
Posts: 293
Caput Mundi (well, it used to ...
You can also incorporate end stops in the cam, but make sure you dimension the bearing arm to be able to take the load. also, how do you account for asymmetry in the cam profile?

#3502879 - 01/25/12 12:40 AM Re: Rudder design [Re: Brandano]
Joined: Nov 2001
Posts: 3,023
Sokol1 Offline
Senior Member
Sokol1  Offline
Senior Member

Joined: Nov 2001
Posts: 3,023
Internet
Originally Posted By: Brandano
You can also incorporate end stops in the cam,


http://avia-sim.ru/forum/files/pedals26_193.jpg

thumbsup

Sokol1

#3503058 - 01/25/12 08:06 AM Re: Rudder design [Re: Brandano]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Hi Brandano,

thanks for your comment. The end stops will be incorporated into the cam, but I would like to have some kind of an adjustable travel, will see.

The asymmetry is a very good point, thx for the head up! I will have to design the CAM profile to have the same lift of the CAM arm in both direction!

Sokol1,

I know Baur`s work it is very inspiring, but we both use a well known technical solution used in hydraulic steered aircrafts. It is called "the feel and centering unit" what can be seen here:
feel and centering unit

#3503434 - 01/25/12 08:18 PM Re: Rudder design [Re: VO101MMaister]
Joined: Aug 2007
Posts: 293
Brandano Offline
Member
Brandano  Offline
Member

Joined: Aug 2007
Posts: 293
Caput Mundi (well, it used to ...
I am currently thinking how to convert my pedals to this sort of mechanism ,pretty simple if you look at what is currently used for centering:

And I want also to try and make something similar to replace the gimbals on my HOTAS Cougar. With the difference that I am going to make it all using just hand tools, pencil and paper. Probably I will fail, but at least I'll have fun trying smile

#3503687 - 01/26/12 02:49 AM Re: Rudder design [Re: Brandano]
Joined: Nov 2001
Posts: 3,023
Sokol1 Offline
Senior Member
Sokol1  Offline
Senior Member

Joined: Nov 2001
Posts: 3,023
Internet
Originally Posted By: Brandano
With the difference that I am going to make it all using just hand tools,


Brandamo, sample of gimbal made with hand tools - with similar mechanism.

http://avia-sim.ru/forum/files/_01_212.jpg
http://avia-sim.ru/forum/files/_02_897.jpg
http://avia-sim.ru/forum/files/_03_185.jpg

Used in this "stick": http://www.youtube.com/watch?v=ylH5RU07vX0&feature=player_embedded

Sokol1

#3503837 - 01/26/12 11:24 AM Re: Rudder design [Re: VO101MMaister]
Joined: Aug 2007
Posts: 293
Brandano Offline
Member
Brandano  Offline
Member

Joined: Aug 2007
Posts: 293
Caput Mundi (well, it used to ...
Very nice design, that double cam is a brilliant idea. My approach is probably not going to be so robust, but perhaps slightly more compact. Most designs place one of the sensors on the inner portion of the gymbal, what I want to do is to have one of the axes on a sliding contact so that both pivots for the sensors can be solidal to the base. This would allow me to add some force feedback mechanics later on, but requires some care to avoid backlash.

#3511781 - 02/05/12 02:01 PM Re: Rudder design [Re: VO101MMaister]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Some progress. The pedal I would say is 90% finished. I managed to make a CAM profile which produce a totally linear gas spring compression both ways.


rudder 3 by [/url], on Flickr


[url=http://www.flickr.com/photos/22174211@N02/6822869525/]

rudder 4 by [url=http://www.flickr.com/people/22174211@N02/][/url], on Flickr


I have to think about the sensoring method. Pots or Hall sensoring. On the main axis it will be hall sensore for sure. On the brakes some good quality pots could do the job as well.

Is there any affordable compact "pot style" hall sensor on the market? I remember some sensors what were offered as an upgrade for TM cougars. They were nice, compact ones. I know it is possible to make some homemade sensors, but I would prefer a ready made one.

#3511874 - 02/05/12 03:51 PM Re: Rudder design [Re: VO101MMaister]
Joined: Feb 2008
Posts: 16
9Thumbs Offline
Junior Member
9Thumbs  Offline
Junior Member

Joined: Feb 2008
Posts: 16
They look great! The Cougar upgrade sensors are provided by Cubpilot - Cubpilot's Hangar
I used them in my homebuilt stick and pedals - they seem to be reliable and are very easy to mount. Affordable? depends on your budget, they are certainly more expensive than the DIY. You can email Cubby for details.

9T

#3511900 - 02/05/12 04:28 PM Re: Rudder design [Re: VO101MMaister]
Joined: Nov 2001
Posts: 3,023
Sokol1 Offline
Senior Member
Sokol1  Offline
Senior Member

Joined: Nov 2001
Posts: 3,023
Internet
Very nice center system!

I think that is more easy use HALL sensor for brakes than pots - these require gear do match movements.
DIY HALL assembly have a small ~30/40 degrees of pratical course, so you easy fit then in brake axis.
You find HALL sensor assembled like pots, like Clarostat HRS100 - not expensive like Cub's ones.

http://www.newark.com/honeywell-s-c-clarostat/hrs100-s-s-a-b-090/hall-effect-sensor/dp/32M7190
http://parts.digikey.com/1/parts/1599703-sensor-hall-effect-rotary-hrs100ssab090.html

Sokol1

#3512465 - 02/06/12 10:58 AM Re: Rudder design [Re: VO101MMaister]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Woww these are pricey. I think I will stick to the DIY version.

#3512499 - 02/06/12 01:04 PM Re: Rudder design [Re: VO101MMaister]
Joined: Nov 2001
Posts: 3,023
Sokol1 Offline
Senior Member
Sokol1  Offline
Senior Member

Joined: Nov 2001
Posts: 3,023
Internet
smile

BTW - The above another option of assembled HALL cost over 3 digit...

Another option, assembled MaRS sensor (theoretically better than the HALL), sold by GVL224 from Ukraine - 10 Euros(15 Euros plus magnets).
http://tinyurl.com/7yfnjsf
http://tinyurl.com/7yfnjsf

Sokol1

Last edited by Sokol1; 02/06/12 03:43 PM.
#3512776 - 02/06/12 06:12 PM Re: Rudder design [Re: Sokol1]
Joined: Oct 2010
Posts: 206
VO101MMaister Offline
Member
VO101MMaister  Offline
Member

Joined: Oct 2010
Posts: 206
Haugesund, Norway
Thx Sokol they look very interesting indeed. I get in touch with this guy. I hope he speaks english:)
